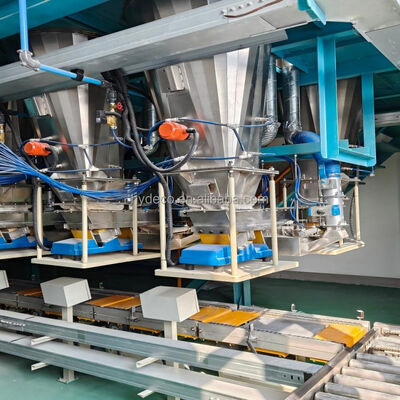

Automatic Chemical Rectangle Batching Machine Small Material Weighing Rubber Industry

1.Qingdao Hydeco automatic small material weighing system adopts single scale or multiple scales for simultaneous weighing and high-precision batching as its main features. It can arbitrarily select workstations for automatic weighing, collect one by one, automatically verify, achieve high production efficiency, high automation degree, centralized dust treatment, small footprint, and low maintenance. It adopts computer network control management, which can realize on-site and remote formula management, formula operation, data reporting, plan management, material statistics, alarm records, action interlocking and other functions.

Δ The weighing unit is a key component for achieving high-precision weighing. The platform scale and conveyor line are completely independent, which not only ensures weighing accuracy but also extends the service life of the platform scale, shortens the self-stabilization time of weighing, and improves weighing efficiency.

Δ According to the different characteristics of small materials, there are two types of feeders: electromagnetic vibration feeders and spiral feeders. Adjust the amplitude and frequency to achieve changes in feeding speed, feeding at high, medium, and low speeds to achieve the shortest batching cycle and highest accuracy.

2.Basic Info.

3.Main Technical Parameters

Feature:

Δ  Realized remote management and control and after- sales support, improved management level.
Δ  Using high resolution electronic scale and weighing display instruments, enabled high weighing accuracy.
Δ  Muli-stations simultaneous weighing and dosing, continuous dosing capactity reached 200-600 bags/shift,resulted in high productivity.
Δ  Key elements and components are all import or from joint venture company's products, ensured stability and reliability.
Δ  Field bus working system (i.e. setup of PLC substations), can automatically check the running conditions, giving alarm location and solution prompting as abnurmalities occur, for facilitation for troubleshooting and maintenance.

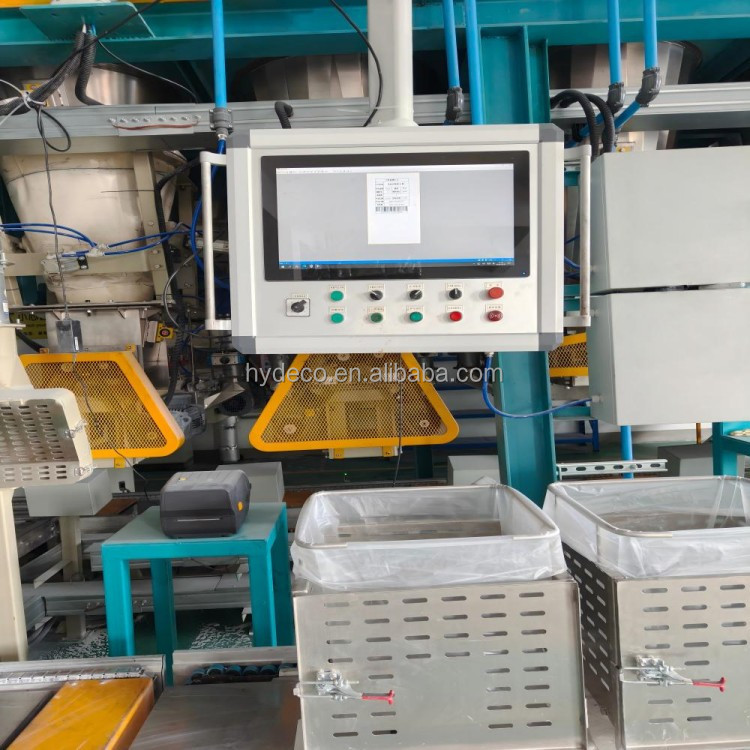

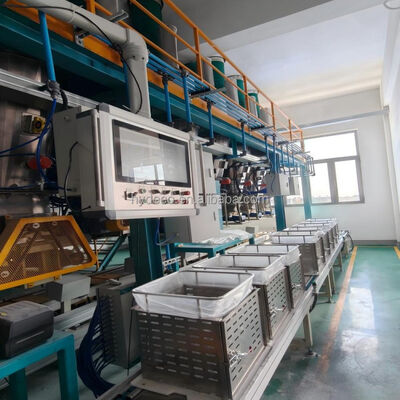

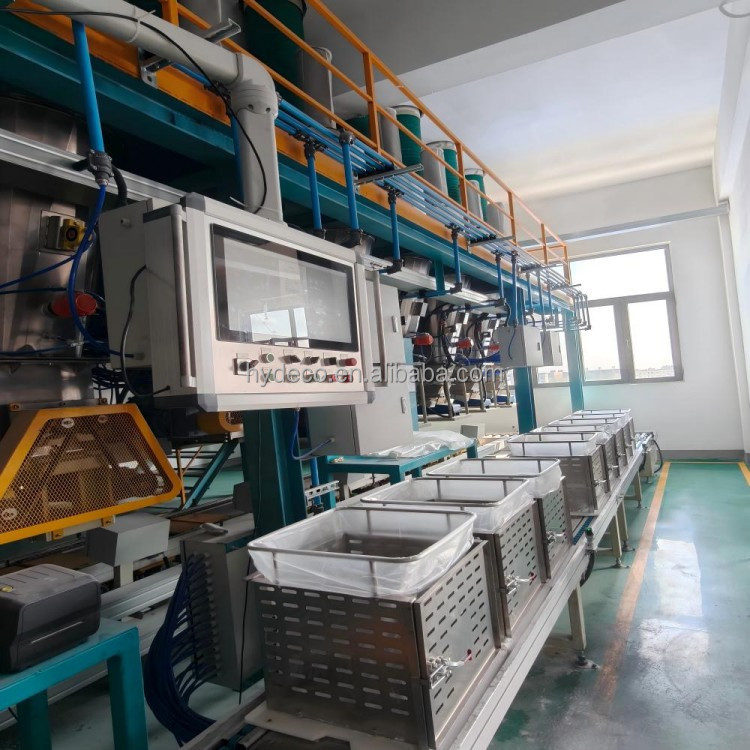

Δ   Rectangular circulation conveying line layout, open Chinese- English M-M interface, system working process display in multi-areas, monitoring and operation functions, all make use easier and simpler.
Δ  Automatically testing the system running conditions, gives alarm location as abnormalities occur, and troubleshooting prompts.
Δ  Lower energy consumption design, avaiable of safety interlocking protection measures, ensured energy saving and safety.

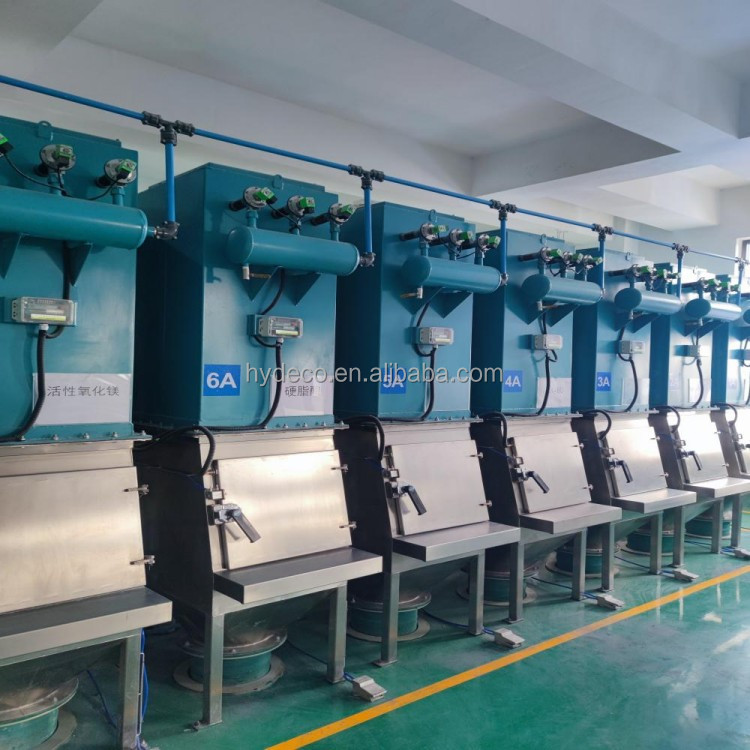

Δ  Optimized dust removal and recovery system design, equipped with bag filter for each machine, free from dust flying and leakage, enabled good environment and no raw material wasting

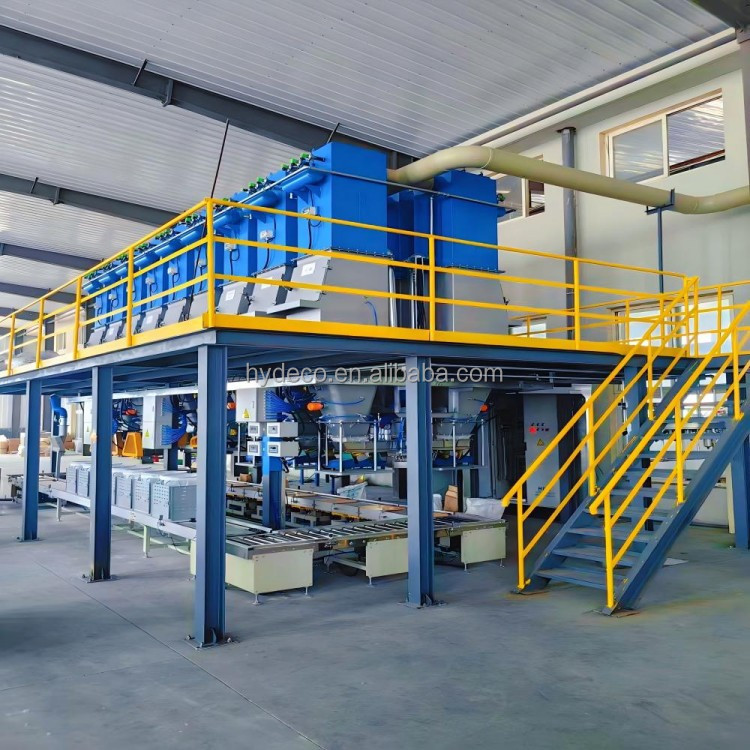

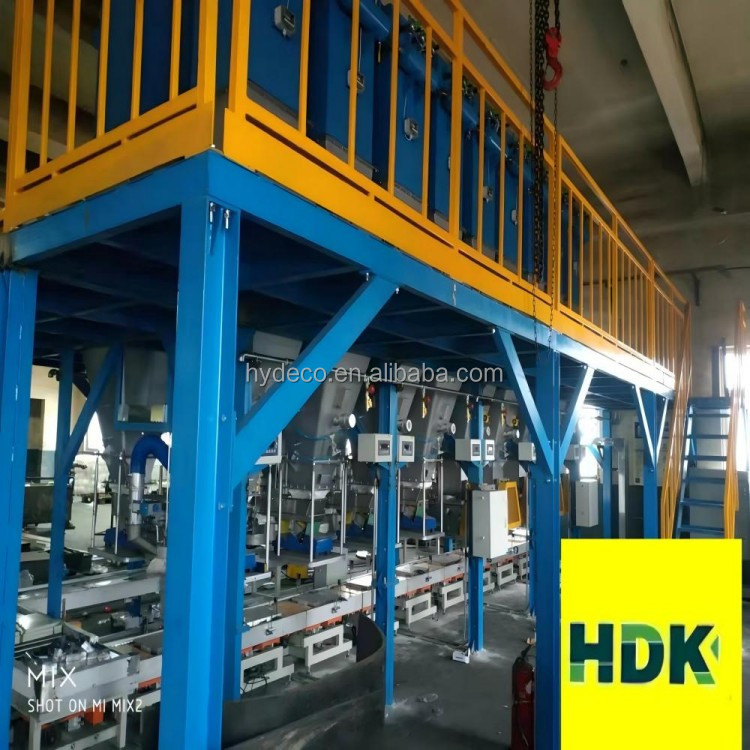

Δ   Flexible layout(incl. 1 and 2 stroy layouts, suitable for 4-50 kinds of raw materials), wide suitability for meeting the demands of different users.

 No Packaging/Wooden Box/Container

Δ According to the actual height of the customer's piant, the size of the production capacity, the process requirements, the investment cost, the humanization of the operation of the workers and the convenience of follow-up maintenance, etc. the auxiliary machine of HDK can customize
the design scheme for the customer, and the height of the plant can be realized from 6 to 22 meters.

Δ Our installation technicians will install and debug at the customer's factory site, usually with a one-year warranty period. We have a local technical team in Southeast Asia that can provide quick response to demand.

Qingdao Hydeco Automation Technology Co., Ltd. is located in Qingdao Rubber Valley, is a national high-tech enterprise integrating production, education and research. Specializing in the rubber industry, plastics industry, powder metallurgy, friction materials and other fields of material conveying and automatic weighing,automatic batching equipment development and production, especially under the structure of the customer's compact plant according to the actual process needs for customers customized structural design. In terms of intelligence, workers can realize the full automation of material weighing and mixing process with just one button, especially in the intelligence of equipment self-diagnosis and self-learning, which has done in-depth research, completely avoided the dependence on skilled operators and maintenance workers, and made the mixing workshop more intelligent and production management easier!

1.What are the outstanding advantages of your product?

Our machines feature energy-saving design,PLC control,which can reduce your production cost by about 15%. All our equipment meets CE/ISO standards, and we offer 2-year warranty with lifetime technical support.

2.Why choose Hedyco?

Since the launch of the first generation of semi-automatic small material weighing equipment in 2014, and now providing an integrated solution of "mixing auxiliary machine+small material weighing+intelligent management system", Heidelberg has always been guided by "meeting industry needs". At present, the company's products have served multiple sub sectors such as tires, seals, rubber hoses, and conveyor belts. Customers are located in rubber industry clusters such as Shandong, Zhejiang, Hebei, Jiangsu, and Anhui. With the advantages of "customized precision, intelligent stability, and fast service response", the company has accumulated more than 90% of customer repurchase rates.
